| ブランド名: | Wolvesteam |
| モデル番号: | アンテナ |
| MOQ: | 1 |
| 価格: | USD1.0 |
| 納期: | 7～15日 |
| 支払い条件: | 50% 事前、50% 出荷前。 |
Full-Spectrum Broadband Coverage | Heavy-Duty Spring Base | MIL-SPEC Durability for Mobile Jamming & Comms

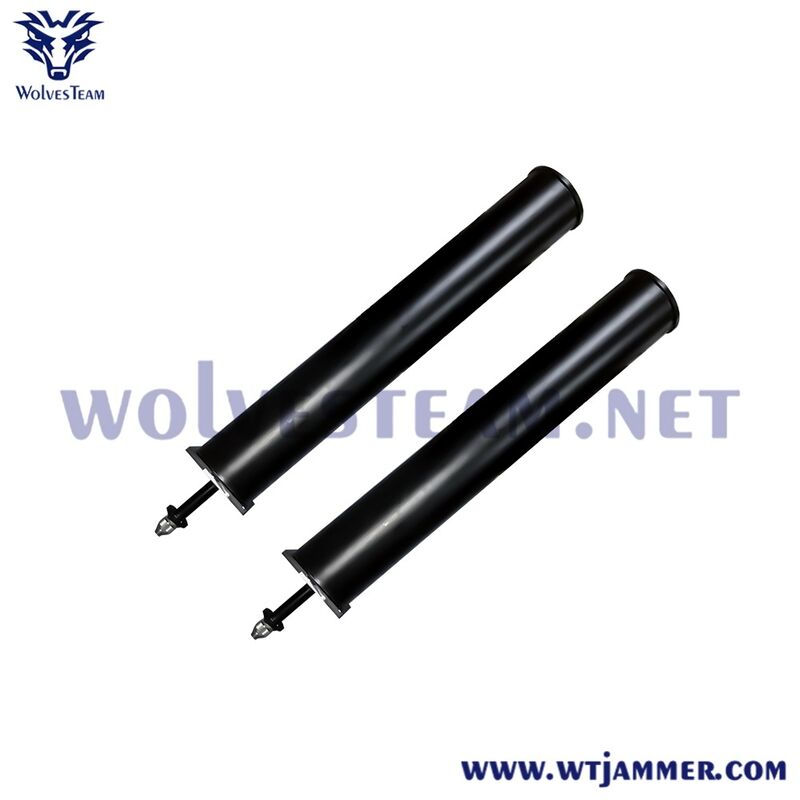

The 20-6000MHz Ultra-Rugged Vehicular Antenna is a professional-grade, heavy-duty broadband antenna designed for mission-critical mobile applications. Covering an extensive frequency range from 20MHz to 6GHz, this single antenna solution eliminates the need for multiple band-specific antennas, significantly reducing system complexity, weight, and installation costs.
| Feature | Benefit |
|---|---|
| 20MHz - 6GHz Broadband Coverage | Single antenna solution for VHF/UHF/SHF communications, GPS, satellite links, and multi-band jamming systems |
| Ultra-Heavy-Duty Construction | Reinforced mast and shock-absorbing spring base withstand extreme vibration, impact, and harsh weather conditions |
| Military-Grade Durability | Built to MIL-STD-810G standards - resistant to temperature extremes, humidity, salt spray, and UV exposure |
| Omnidirectional Radiation Pattern | Provides 360° full coverage - ideal for mobile operations and convoy protection |
| High Gain Performance | Ensures strong signal transmission and reception across the entire frequency spectrum |
| Quick Installation | Standard mounting compatible with most vehicle platforms - minimal setup time required |
| Low Maintenance | Robust design ensures long service life with minimal upkeep |
| Customization Available | Frequency tuning, connector types, cable length, and mounting options available to meet specific requirements |
| Parameter | Specification |
|---|---|
| Frequency Range | 20 MHz - 6000 MHz |
| Antenna Type | Foldable omnidirectional broadband |
| Gain | High-gain performance across full band (specify upon request) |
| VSWR | ≤ 2.5:1 (typical across most bands) |
| Polarization | Vertical |
| Input Impedance | 50Ω |
| Power Handling | Up to 100W (depending on configuration) |
| Mounting Type | Heavy-duty spring base / fixed vehicle mount |
| Connector | N-Type (standard) / customizable upon request |
| Mast Material | High-strength stainless steel / aluminum alloy |
| Operating Temperature | -40°C to +85°C |
| Environmental Protection | Dustproof, waterproof, corrosion-resistant |
| Color | Military green / black (customizable) |
This versatile antenna is suitable for a wide range of professional applications across various sectors:
