1000W AC110-240V 12 Bands Vehicle Jammer With Removable module

ブランド名:	Wolves Team
モデル番号:	WT808VC100-12
MOQ:	1PC
価格:	USD1.0
納期:	15～20日
支払い条件:	D/A、D/P、T/T、ウェスタンユニオン

詳細情報

製品説明

詳細情報

起源の場所:

中国製

証明:

ROHS/FCC/ISO 9000/CE/ANATEL

色:

黒

周波数範囲:

20～6000MHz/700～2600MHz

頻度:

CDMA/GSM/3G 携帯電話

遮断器のタイプ:

車の爆弾の妨害機

チャネル番号:

各バンドのパワー:

50W

妨害範囲:

500mから1000m

パッケージの詳細:

カートン

供給の能力:

1000個

ハイライト:

1000W vehicle signal jammer with removable module

12 bands vehicle jammer AC110-240V

high-power car jammer with warranty

製品説明

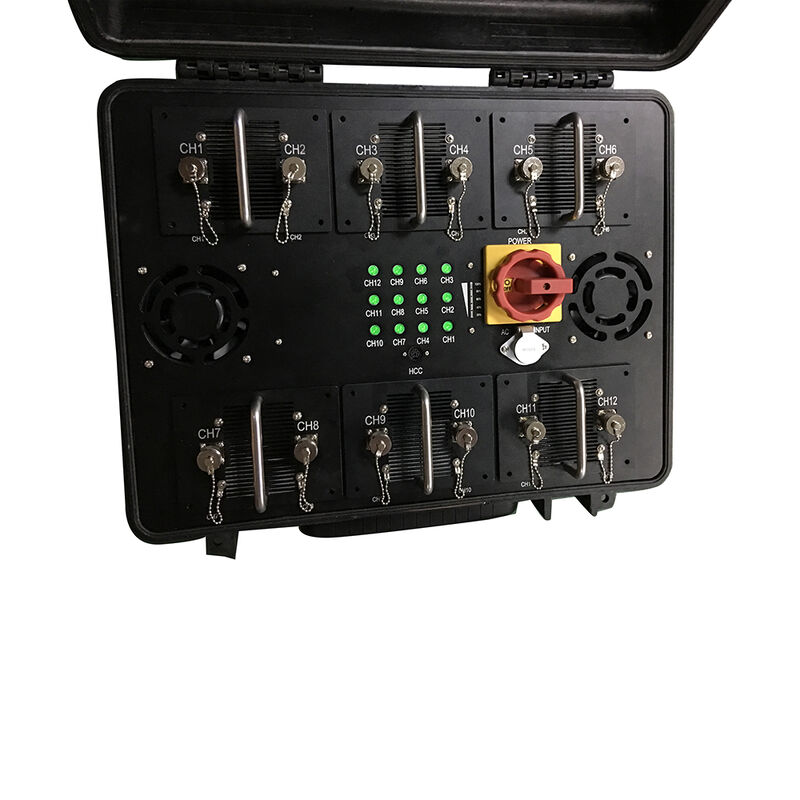

1000W AC110-240V 12 Bands Vehicle Jammer With Removable Module

This advanced vehicle jammer features external double channel directional panel antennas with flexible antenna selection options for customized jamming coverage. With a powerful jamming range of up to 500 meters, performance varies based on local signal strength. This high-quality jamming device offers exceptional value and reliable performance.

Technical Specifications

Frequency Channels

Channel	Frequency Range	Application	Power
CH1	20-100 MHz	Radio Control Toys; Alarms	50W
CH2	100-200 MHz	Walky-talky (VHF)	50W
CH3	200-350 MHz	Walky-talky (UHF300)	50W
CH4	350-500 MHz	Walky-Talky400 Car Alarm	50W
CH5	500-1000 MHz	Cellular CDMA/TDMA, Walky-Talky (UHF800/900)	50W
CH6	851-960 MHz	CDMA/GSM	50W
CH7	1805-1990 MHz	DCS/PCS	100W
CH8	2110-2170 MHz	3G: Cellular UMTS/WCDMA	100W
CH9	725-770 MHz (US) / 790-826 MHz (Europe)	4G LTE	100W
CH10	2345-2400 MHz (US) / 2620-2690 MHz (Europe)	4G WIMAX	100W
CH11	3200-3800 MHz	5G	-
CH12	1520-1580 MHz / 2400-2500 MHz / 5200-5800 MHz	GPS & Satellite; WLAN & Bluetooth & WiFi	50W

System Specifications

Total RF Power	Max: 1000Watt
Power Supply	AC110-240V
Shielding Area	100-1000m (depending on mobile network signal density)
Jammer Module Number	12
Cooling System	Systematic Smart Cooling System
System Protection	VSWR, Over-voltage, Over-current
Jamming Source	DSS Source Technology
Remote Control	Full System Operation Control (Optional)
Antenna Type	High Gain Omnidirectional Antennas
Number of Antennas	12
Vehicle Platform	Off-road four-wheel drive car
Weight	45 Kg (main unit only)
Dimensions	690 × 690 × 390mm
Humidity	30%-95%
Operating Temperature	-20 to +55 Celsius Degree

Key Features & Advantages

Aluminum-alloy casing with high protection rating, resistant to dust, water, and corrosion
Advanced heat sink design combined with cooling fans for optimal thermal management
Specialized technology to prevent interference between frequency bands
Targets downlink frequency only, without disrupting base station operations
Selectable frequency bands and output power settings
Independent RF ON/OFF switches for each frequency band
Independent power adjustment for each frequency band
Circuit protection against antenna short circuits or disconnections
Optional directional or omnidirectional antenna configurations
Easy operation and installation procedures
Upgrade-ready module installation capability
Continuous 24/7/365 operation capability

Additional Technical Details

Frequency Range	20-6000MHz / 700-2600MHz
Target Frequencies	CDMA/GSM/3G Cellphone
Jammer Type	Vehicle Bomb Jammer
Channel Number	12
Each Band Power	50W
Total Output Power	600W
Jamming Range	10-500m
Primary Applications	M ilitary Units, Prison, P olice, Bomb Disposal

Monitor Software Functions (Optional)

Remote control switching for individual machines
Remote monitoring of machine operational status
Remote adjustment of power output for each machine
Remote viewing of offline logs for each machine
Email notifications for machine status updates
Secure permission-based login system

Applications

High quality jammers are widely used in M ilitary Units, Prison, P olice, Bomb Disposal and Security Services. Additional applications include Prison facilities, Gas Stations, Guard posts, Schools, Churches, Examination Rooms, Libraries, Hospitals, Theaters, Classrooms and other critical locations and situations requiring signal control.

Terms & Conditions

Delivery Time

15-20 Days

Payment Terms

50% advance, 50% before shipping

Delivery Terms

FOB Hong Kong/USA

Warranty

36 months

Software Updates

Free updates for 36 months

Extended Warranty

5% of total cost per year after 4th year

Important Operational Notes

Jamming distances are for reference only. Actual performance varies depending on signal strength, location conditions, and battery charge level. Do not use the jammer while charging, as this may damage the unit. Units without built-in cooling fans are particularly susceptible to overheating during charging operations.

Manufacturing & Support

Our experienced R&D team in the USA is dedicated to continuous product development and innovation. With over 10 years of industry expertise, we specialize in cellular jammers, GPS jammers, WiFi jammers, and various signal repeater/amplifier systems. Our comprehensive product line includes portable jammers, desktop jammers, prison jammers, vehicular jammers, bomb jammers, IED jammers, and RF jammers for both m ilitary and civilian applications.
