Omnidirectional Mushroom Head Drone Detector 360° Security Monitoring Device

Name: Omnidirectional Mushroom Head Drone Detector 360° Security Monitoring Device
Brand: Wolves Team Limited
SKU: S300
Price: 1800 USD
Availability: InStock

ブランド名:	Wolves Team
モデル番号:	S300
MOQ:	1
価格:	$1800
納期:	7-15
支払い条件:	L/C、D/A、T/T、ウェスタンユニオン

詳細情報

製品説明

詳細情報

起源の場所:

中国

証明:

ROHS/FCC/ISO 9000/CE

製品名:

キノコ頭対 UAV 探知機

モデル番号:

S300

製品タイプ:

UAV探知機/ドローン対策監視装置

外見スタイル:

キノコの頭のデザイン

検出方向:

全方位360°検出

主な検出信号:

2.4GHz WiFi、5.8GHz WiFi、UAV リモコン信号、GPS 信号

最大検出範囲:

1000 m

検出高度:

低地（0～1000m）

応答時間:

≤1秒

追跡可能な最大ターゲット数:

32 / 64 ターゲット

検出精度:

高精度

作業モード:

24時間365日の継続監視

設置方法:

固定壁掛け / 地上設置

シェル材質:

アルミ合金+ABS

防水グレード:

IP54 / IP65

動作電圧:

DC12V / AC110～240V

消費電力:

15W / 25W

使用温度:

-20℃ | +60℃

保管温度:

-30℃～+70℃

通信インターフェース:

RJ45 / RS485 / 無線伝送

出力信号:

リアルタイムアラーム/位置データ出力

アラームモード:

音アラーム / 光アラーム / リモートアラーム

アプリケーションシナリオ:

国境警備、空港、刑務所、景勝地、政府用地、重要インフラ

主な機能:

全方位検知、低空監視、自動警報、安定動作

パッケージの詳細:

カートン梱包

供給の能力:

ハイライト:

360° omnidirectional drone detector

mushroom head drone security device

drone detector with 360° monitoring

製品説明

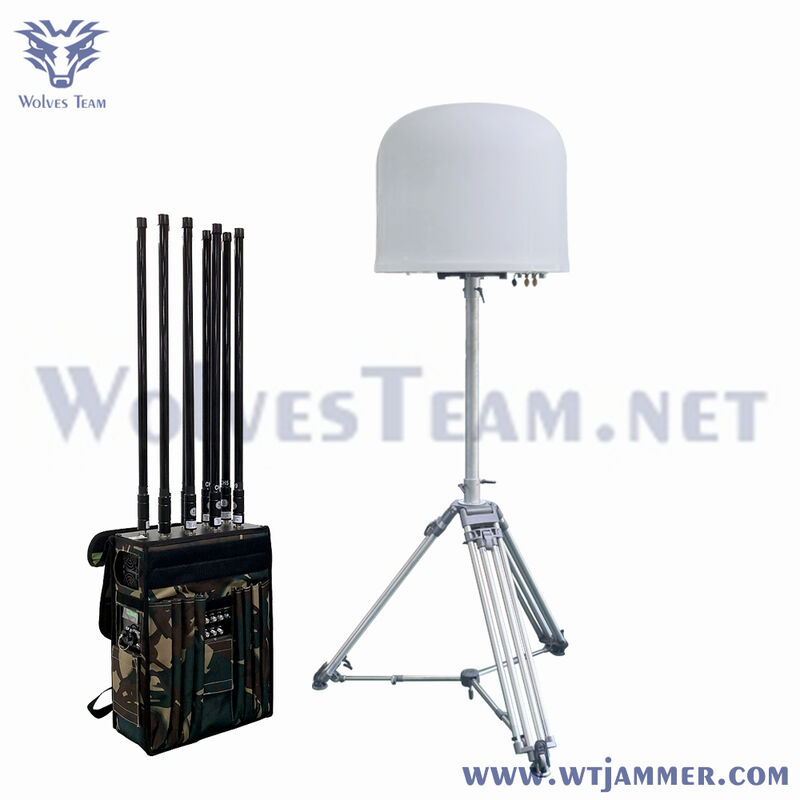

Omnidirectional Mushroom Head Drone Detector - 360° Security Monitoring Device

Array Radar low altitude surveillance system provides comprehensive three-dimensional space monitoring for low altitude small targets with omnidirectional, high elevation coverage. This advanced system performs real-time reconnaissance of birds, aircraft, ground personnel, vehicles and other targets in the surrounding area, delivering precise target tracking and information reporting to designated users.

System Deployment Options

Radar supports three flexible erection modes for diverse application scenarios: fixed installation, vehicle-mounted deployment, and portable configuration.

Key Product Characteristics

All-Space Three-coordinate Detection

Provides all-day, all-weather large-scale regional reconnaissance with comprehensive acquisition of azimuth, distance and altitude three-dimensional position information. Features long detection distance and high data rate capabilities.

Target Tracking and Guidance

Enables simultaneous tracking of 64 targets with regular position coordinate updates. Capable of guiding high-precision angular measurement equipment for high-speed target tracking based on user selection.

Advanced Recognition Capability

Utilizes automatic target classification and recognition technology to detect and identify low altitude targets including personnel, vehicles, small UAVs, helicopters, and birds with recognition probability exceeding 80%.

Superior Environmental Adaptability

Designed to meet target detection requirements in complex environments including plateau, mountain, and hilly terrain. Provides real-time target information output to operators or through communication equipment to other systems.

Technical Specifications

Indicator	Parameter
Working Frequency	Ku band
Working Mode	Pulse Doppler
Detection Range	≥5km
Antenna Fan Sweep Range	0-360°
Pitch Beam Width	10-40°
Azimuth Beam Width	2.4°
Target Radial Velocity	2.8-144km/h
RCS	≥0.01M²
Minimum Detection Range	≤120m
Ranging Accuracy	<10m
Azimuth Accuracy	≤0.5°
Distance Resolution	≤15m
Azimuth Resolution	≤0.5°
Speed Accuracy	0.293m/s
Transmit Power	120W
Weight	55kg

Application Scenarios

Ideal for prisons, governmental compounds, homeland security, correctional centers, petrochemical industry facilities, sports venues, theaters, VIP convoy protection, bomb prevention/disposal, schools and universities, power generating plants, and other sensitive locations requiring comprehensive security monitoring.

Frequently Asked Questions

Why choose our products?

Passionate, experienced and highly-educated R&D and sales team
Reasonable pricing with reliable products and skillful assembly
Strict quality assurance and responsive aftersales service
Lifetime technical support with customized configuration options

Are you a manufacturer or trading company?

We are a manufacturer with 15 years of industry experience. We welcome visits to our production facility.

Can we use our logo on the products?

Yes, we offer comprehensive OEM and ODM services for custom branding requirements.

What is your product warranty policy?

We provide a one-year warranty upon delivery of all products.

Business Terms & Conditions

Delivery Time	2-3 weeks from receipt of confirmed purchase order and advance payment
Payment Terms	50% advance, 50% before shipping
Delivery Terms	FOB Hong Kong/USA
Warranty	36 months
Software Updates	Free updates provided for 36 months
Extended Warranty	5% of total value per year after 4th year

USA R&D Group

Our strong and excellent R&D team in the USA is dedicated to continuous research and development of innovative products. We maintain a consumer-oriented approach to deliver satisfying solutions to our customers.

China Manufacturing Facility

We offer a comprehensive line of cellular jamming products ranging from cost-effective portable units to high-specification industrial systems. With 10+ years of industry expertise, we specialize in cell phone jammers, GPS jammers, WiFi jammers, 3G/4G jammers, Lojack jammers, UHF/VHF jammers, RF jammers, audio jammers, wireless video jammers, and signal repeaters/amplifiers/boosters.
