| Place of Origin: | China |
| ブランド名: | Wolves Team |
| 証明: | CE,ISO |
| Model Number: | WT805712 |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Box |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| パッキング: | 箱 | 冷却システム: | 高効率アルミニウム合金ヒートシンク |
|---|---|---|---|
| 材料: | アルミニウム合金 | サイズ: | 580×580×680mm |
| バッテリーの動作時間: | 2〜3時間 | モニター ソフトウェア機能: | 各機械のリモート・コントロール スイッチ。 |
| ジャミング周波数: | 20-6000MHz 2G 3G 4G 5G WiFi VHF UHF | ジャミング範囲: | 300メートルまで |
| ハイライト: | 600W VHF UHF signal jammer,aluminum alloy WiFi jammer,5G vehicle signal blocker |
||

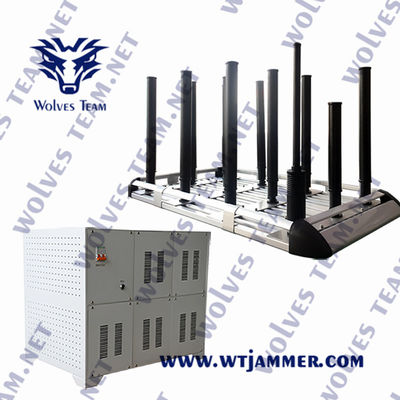

This High Power Full Band Vehicle Military Convoy Protection Roof Mounted Jammer System is a High Power DDS Convoy Jamming System, implementing the most effective and reliable RF jamming technology and equipped with a fully-integrated broadband jamming system.
It is designed for Protect military and country leaders VIP team, EOD, police investigation and arrest prisons, government buildings, wireless remote bomb and some occasions for a temporary protection to respond to some emergencies.
Also this Bomb jammer can cover, continuously and simultaneously, all the RF communication Frequencies can custom for 20-6000MHz. It will be the best solution to defend a VIP convoy for and features rapid deployment and set up for military bases, important sports events, international summits, and other high profile events.
The Bomb jammer is a fully portable multi-band PLL or DDS Jamming system, and designed with a ruggedized trolley type case for high mobility. This device is configured more than 12 different jamming modules, and the jamming frequency can be more than 12 Bands. This High power Jammer 12 bands jamming frequency modules can provide up to 1200 Watt output power maximum. The Bomb jammer is very easily installed and operated. The device can be powered by AC mains or a suitable DC power source.
The general design of the system meets military requirements and international quality standards.

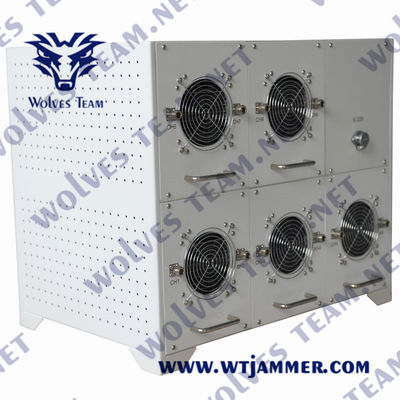

Aluminum-alloy Casing: The device is housed in an aluminum-alloy casing that provides high protection, offering resistance to dust, water, and corrosion.
Cooling System: The heat sink design, combined with fans, effectively maintains the system in a cooling state for optimal performance.
Frequency Interference Prevention: Utilizes special technology to prevent interference between each frequency band, ensuring reliable operation.
Minimal Disruption: Only interferes with the downlink frequency of mobile systems, allowing Base Stations to function normally without disturbance.
Customizable Settings: Frequency bands and output power are selectable, with each band controlled by independent RF ON/OFF switches for flexibility.
Circuit Protection: Includes circuit protection mechanisms to prevent system damage in case of antenna short circuiting or disconnection.
Antenna Options: Choose from directional or Omni-directional antennas for optimal signal reception based on your needs.
Easy Installation: Simple operation and installation make setup hassle-free and convenient.
Upgrade Compatibility: Designed to accommodate future upgrades with module installations, keeping your system up-to-date.
Continuous Operation: Capable of working 24 hours a day, 365 days a year for uninterrupted performance.
|
Output Interface |
RF Frequency Band(MHz) |
Application | RF Output Power (Watt) |
| CH1 | 20-80 | Toys HM Remote control | 50W |
| CH2 | 135-175 | Walky-talky VHF/Lojack | 50W |
| CH3 | 400-480 | Walky-talky (UHF400) | 50W |
| CH4 | 790-826MHz | 4G/GSM850 | 50W |
| CH5 | 925-960MHz | GSM900 | 50W |
| CH6 | 1800-1880MHz | DCS | 50W |
| CH7 | 2100-2170MHz | 3G | 50W |
| CH8 | 2570-2690MHz | 4G WIMAX | 50W |
| CH9 | 3400-3600MHz | 5G | 50W |
| CH10 | 2400-2500 | WIFI & Bluetooth | 50W |
| CH11 | 5700-5800 MHz | WIFI 5.8G | 50W |
| CH12 | 1560-1625MHz | GPSL1 | 50W |
| Option | 20-6000MHz | Option | Option |
| Total RF Power | 600Watt | ||
| Power supply | Input AC230V | ||
| Shielding area | 100-300m @ according to signal density of mobile network | ||
| Jammer Module Number | 12 | ||
| Cooling System | Systematic Smart Cooling System | ||
| System Protection | VSWR, Over-voltage, Over-current | ||
| Jamming Source | PLL Source Technology | ||
| Remote Control (Option) | Full System Operation Control | ||
| Antenna Type | High Gain Omnidirectional Antennas | ||
| Number of Antennas | 12 | ||
| Power consumption: | 600W | ||
| Power Supply Source (Option) | Additional AC Alternator ( 600W) or Additional DC Generator ( +24 VDC/25A ) |
||
| Weight: | 35.00Kg | ||
| Size (length × wind × high): | 580×580×680mm | ||
| Humidity: | 30%-95% | ||
| Running Temperature: | -20 to +60 Celsius Degree | ||
High quality jammers are extensively utilized in various sectors such as Military Units, Prisons, Police forces, Bomb Disposal units, and Security Services.
They can also be deployed in locations including government facilities, Gas Stations, security Guard patrol sites, Schools, Churches, Meeting Rooms under invigilation, Libraries, Hospitals, Theaters, Classrooms, and other critical venues and scenarios.
| Delivery Time Schedule | Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms | 50% advance, 50% before shipping. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates will be provided for a period of 36 months. |
| Extended Warranty | After 4th Year : 5% of total for each years. |
